Author Topic: Close call!!!!!  (Read 315 times)
unchained
Member
Cafe Racer
***
Offline Offline

Posts: 1862


I seem to be collecting X9s!!!!


« on: November 27, 2017, 09:32:38 »

Yesterday I stripped down the Evo to replace the temp sensor and, while it was naked, I thought I would check the belt for wear as it has done close on 8K.

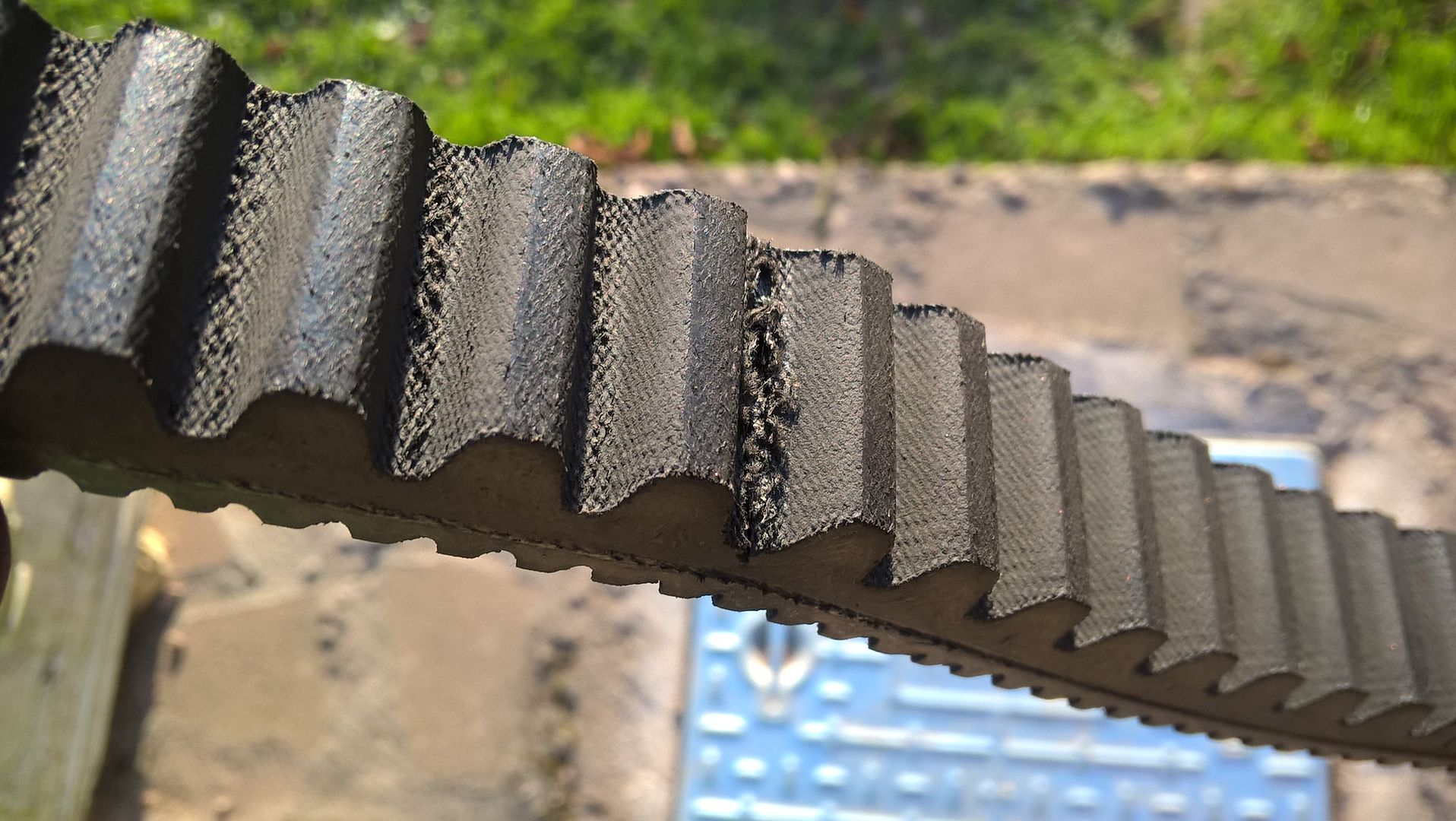

I did the recommended width measurement which was fine 25.76mm and was about to put everything back together when I noticed this:

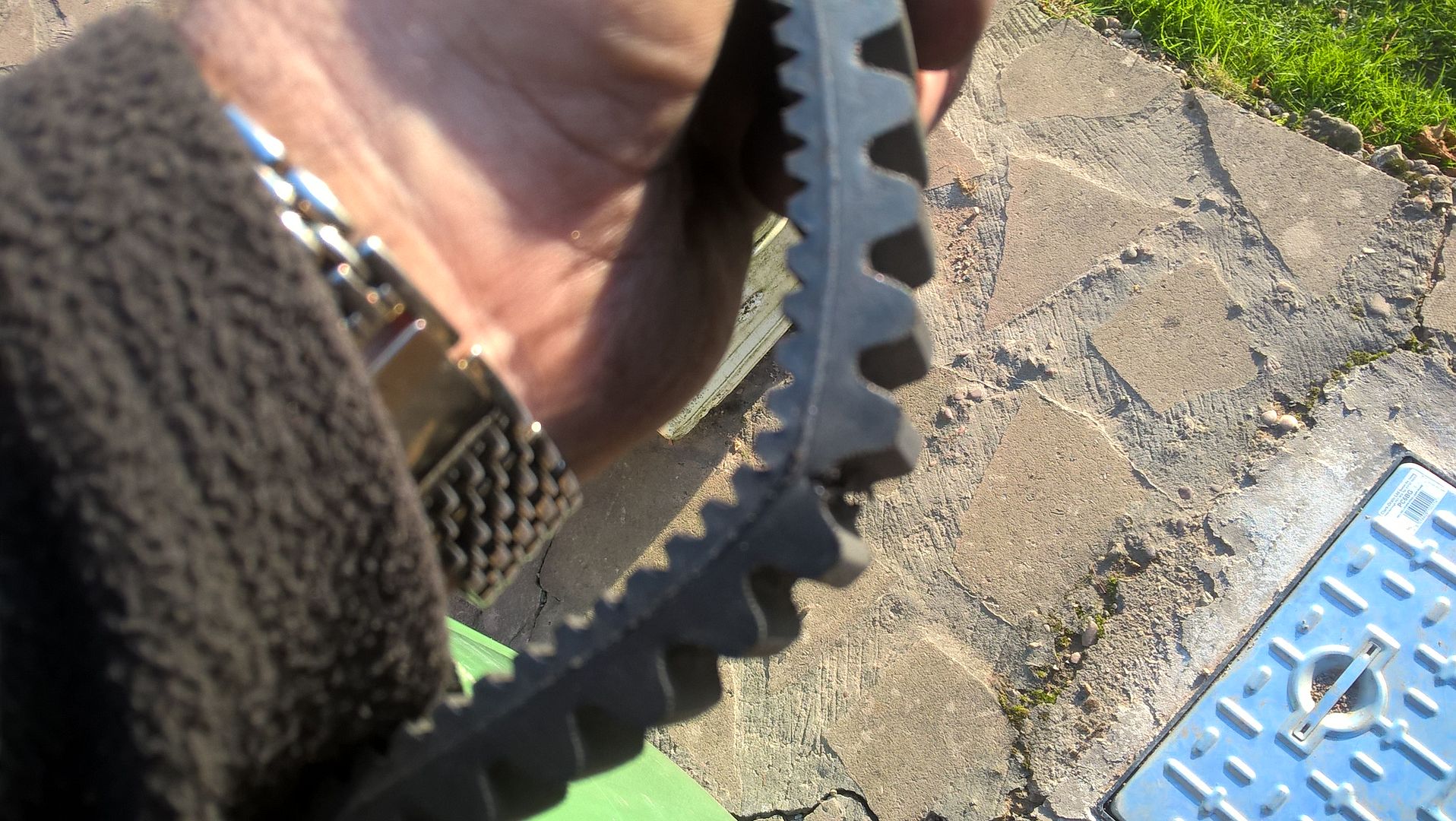

I quickly removed the belt and examined it further:



Looks like it was likely to snap at the next fast overtake I do.

All I have to do now, is fit new clutch shoes as mine are definitely is definitely spelled definitely past there sell by date. I have a feeling the springs have weekened and have caused premature wear.
Now, how do I split the clutch?

Bob

Logged

X9 125cc 51 Reg in red (now sold)
X9 250sl 03 Reg (Given away, it left me in the back of a Micra!!!)
X9 500sl 03 Reg, now in Black
X9 500 Evo 04 in blue
spannerman
Super Member
Full Cat A
*
Online Online

Posts: 3458



« Reply #1 on: November 27, 2017, 11:24:08 »

Just got that in time Clap Clap Clap Clap Clap Clap
Logged

Dave Weller, Chatham
FJS600 Silverwing 2010.
unchained
Member
Cafe Racer
***
Offline Offline

Posts: 1862


I seem to be collecting X9s!!!!


« Reply #2 on: November 27, 2017, 14:58:28 »

Yes Dave, nearly missed it!

Bob
Logged

X9 125cc 51 Reg in red (now sold)
X9 250sl 03 Reg (Given away, it left me in the back of a Micra!!!)
X9 500sl 03 Reg, now in Black
X9 500 Evo 04 in blue
Dave Milnes
Administrator
Stunt Rider
*****
Offline Offline

Posts: 19962


Fylde Coast


WWW
« Reply #3 on: November 27, 2017, 17:20:30 »

That almost looks like damage rather than wear, as if an object has been wedged in the tooth and ripped it. It could be a manufacturing defect too. None of the belts I have ever taken off have shown any sign of stress which is why I have been steadily extending the mileage to almost double the book figure.
Logged

'04 X9 500 Evo in YELLOW - LED's, K&N, twin lights, bleepers...
'12 NC700D Integra in Cherry Red, K&N, panniers, bleepers...
unchained
Member
Cafe Racer
***
Offline Offline

Posts: 1862


I seem to be collecting X9s!!!!


« Reply #4 on: November 27, 2017, 19:19:12 »

Not too sure Dave, it was an OEM belt from Italy, the supplier I think you use and recommended.
I think I do put my belts through a fair bit with my riding style.
Also, the flapper wheel had all but stopped turning so whether that has made any difference.

Just glad I spotted it when I did as I don't fancy one going when I am hurtling through the countryside at 4 in the morning.

Bob
Logged

X9 125cc 51 Reg in red (now sold)
X9 250sl 03 Reg (Given away, it left me in the back of a Micra!!!)
X9 500sl 03 Reg, now in Black
X9 500 Evo 04 in blue
x9smoothie
Provisional
**
Offline Offline

Posts: 283


« Reply #5 on: December 02, 2017, 15:38:52 »

on your next belt you may want to check it earlier to make sure all is right
Logged

2005 X9 500 EVO
unchained
Member
Cafe Racer
***
Offline Offline

Posts: 1862


I seem to be collecting X9s!!!!


« Reply #6 on: December 02, 2017, 19:31:52 »

I have to agree, the problem is, I rack up the miles so quickly, even using both bikes, the belt changes come around without me realising.

I think that this belt has probably worn quickly because:

The flapper wheel had all but seized.
I noticed a while back that the air intake for the belt was somewhat blocked with country debris.

These two factors have caused everything to run hotter than normal and that together with a couple of long several hour ride outs has done for the belt.

I will however keep a closer eye in future.

Bob
Logged

X9 125cc 51 Reg in red (now sold)
X9 250sl 03 Reg (Given away, it left me in the back of a Micra!!!)
X9 500sl 03 Reg, now in Black
X9 500 Evo 04 in blue
unchained
Member
Cafe Racer
***
Offline Offline

Posts: 1862


I seem to be collecting X9s!!!!


« Reply #7 on: December 03, 2017, 13:54:51 »

Love it when a plan comes together!:

My homemade clutch compressing tool worked a treat and I now have a new clutch (5 shoe variety), a new flapper wheel bearing and a new belt.

Need to take it for a run and check everything over but at least with the new clutch I have lost that idle jingle from the backing plate. Will be interesting to see how many miles it does before the jingle reappears or whether the upgraded 5 shoe clutch doesn't suffer from it.

Bob
Logged

X9 125cc 51 Reg in red (now sold)
X9 250sl 03 Reg (Given away, it left me in the back of a Micra!!!)
X9 500sl 03 Reg, now in Black
X9 500 Evo 04 in blue
Mr.Chips
Administrator
Stunt Rider
*****
Online Online

Posts: 14062



« Reply #8 on: December 03, 2017, 16:30:48 »




Logged

Mike.
2013 Honda Silverwing 600: 'The Crowman' - Pure Black, ABS, Givi Airflow Screen, Top-Box and Universal Handlebar Muffs.
When did you last read the Highway Code?
Now part of the SW England (Salisbury) Chapter.
"All that is necessary for the triumph of evil is that good men do nothing."
Edmund Burke
http://www.youtube.com/watch?v=NoPlwPUYWaw&feature=channel
x9smoothie
Provisional
**
Offline Offline

Posts: 283


« Reply #9 on: December 07, 2017, 19:16:29 »

>>My homemade clutch compressing tool worked a treat and I now have a new clutch (5 shoe variety), a new flapper wheel bearing and a new belt.
Hard to beat the great feeling of personal achievement  Clap Clap Clap
Logged

2005 X9 500 EVO
Dave Milnes
Administrator
Stunt Rider
*****
Offline Offline

Posts: 19962


Fylde Coast


WWW
« Reply #10 on: December 08, 2017, 08:04:42 »

Yes, but no jingle bells at Christmas?
Logged

'04 X9 500 Evo in YELLOW - LED's, K&N, twin lights, bleepers...
'12 NC700D Integra in Cherry Red, K&N, panniers, bleepers...
